The Pearson 26 One-Design : 1977–1983

Pearson 26 Insignia

Bill Shaw said "I took our proven Pearson 26 hull, gave her a new deck, moved the shrouds inboard for closer sheeting and voila — I had the perfect boat"

The P26-OD

The Pearson 26 One-Design is in a class by herself - an alternative with the proven characteristics of her sisterships, the Pearson 26 and Pearson 26W. Both her sailing ability and her lines are beautifully balanced. Racing, cruising, day sailing. The best of all world at a price that defies analysis.


For some time now I've been wondering why there are no boats designed to appeal to the one design racer and the day sailor who's ready for cruising accomodations. The sailor I'm talking about is that type who doesn't want to give up round-the-buoy racing or have quick after supper before sundown sails.
I figured there are hundreds of good sailors out there who can't afford a full blown cruising boat or don't want one because of the nature of the sailing they do. You know what I mean... probably day sailing, a few overnights, and a schedule of club racing. This kind of activity doesn't call for an expensive boat with all the amentities of an offshore cruiser. Rather it calls for a nice compromise between a performance one-design and an easily managed family cruiser... a beautifully finished boat with a big cockpit and low profile that still sleeps four and has provisions for a head and a galley.
So I took our proven Pearson 26 hull, gave her a new deck, moved the shrouds inbound for closer sheeting and wallah… I had the perfect boat. Its everthing you need at a desireable price. Give the Pearson 26 OD some thought. Mention it to your friends at the club, start a fleet, Come Sail With Us…

Bill Shaw signature

Pearson 26OD

Pearson 26OD

Pearson 26 – By The Numbers


LOA (Overall Length) 26.17' [7.98 m]
LWL (Waterline Length) 21.67' [6.61 m]
Beam 8.67' [3.12 m]
Draft 4.0' [1.22 m]
Displacement 5,200 lbs [2449 kg]
Ballast 2,200 lbs [998 kg]
Sail Area 321.78 sq ft [44.4 m²]
Mast Height (above D.W.L.) 35.16' [10.72 m]
Cockpit Length 8' 11"
Auxillary Power Outboard
Foretriangle Area 184.28 sq ft
Mainsail Area 137.5 sq ft
I – Foretriangle Height 31.5'
J – Foretriangle Base 11.7'
P – Mainsail Hoist 27.5'
E – Mainsail Foot 10.0'
*approximations from Pearson Yachts

Technical Data

Designer Bill Shaw
Years Built 1978 – 1983
Hull Speed 6.24 kn
SA/D – Sail Area to Displacement 16.74
DLR or D/L – Displacement to Length Ratio 237
BR – Ballast Ratio 40.75%
L/B – Length to Ballast 2.99
LWL/B – Waterline Length to Ballast 2.48
OR – Overhang Ratio 21%
CSF – Capsize Screening Formula 1.99
MCR – Motion Comfort Ratio 19.95
M/F – Main to Foretriangle Ratio 184
PHRF – Performance Handicap Rating 210 (average)

Pearson 26OD On The Web

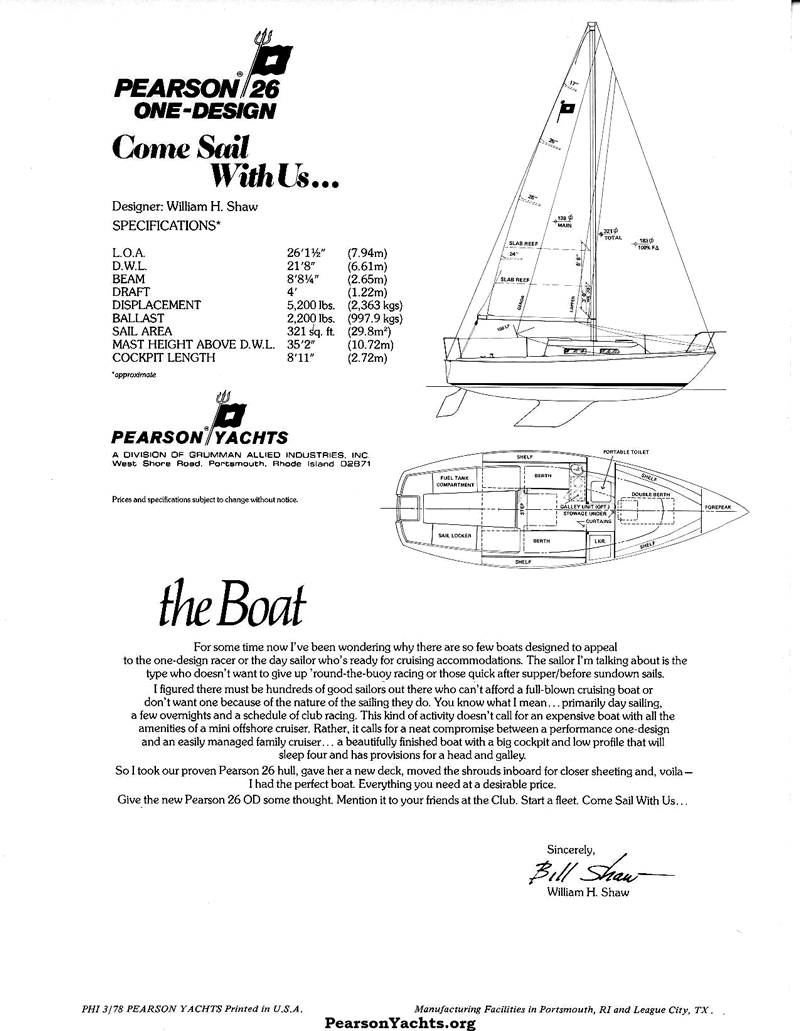

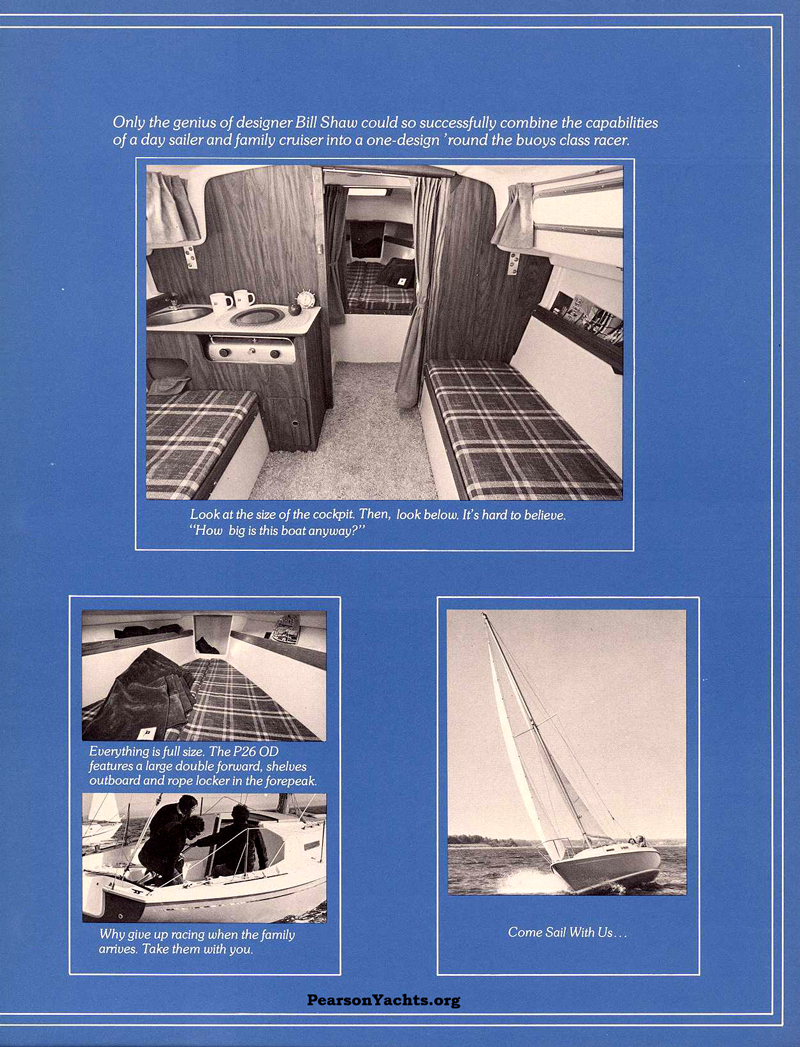

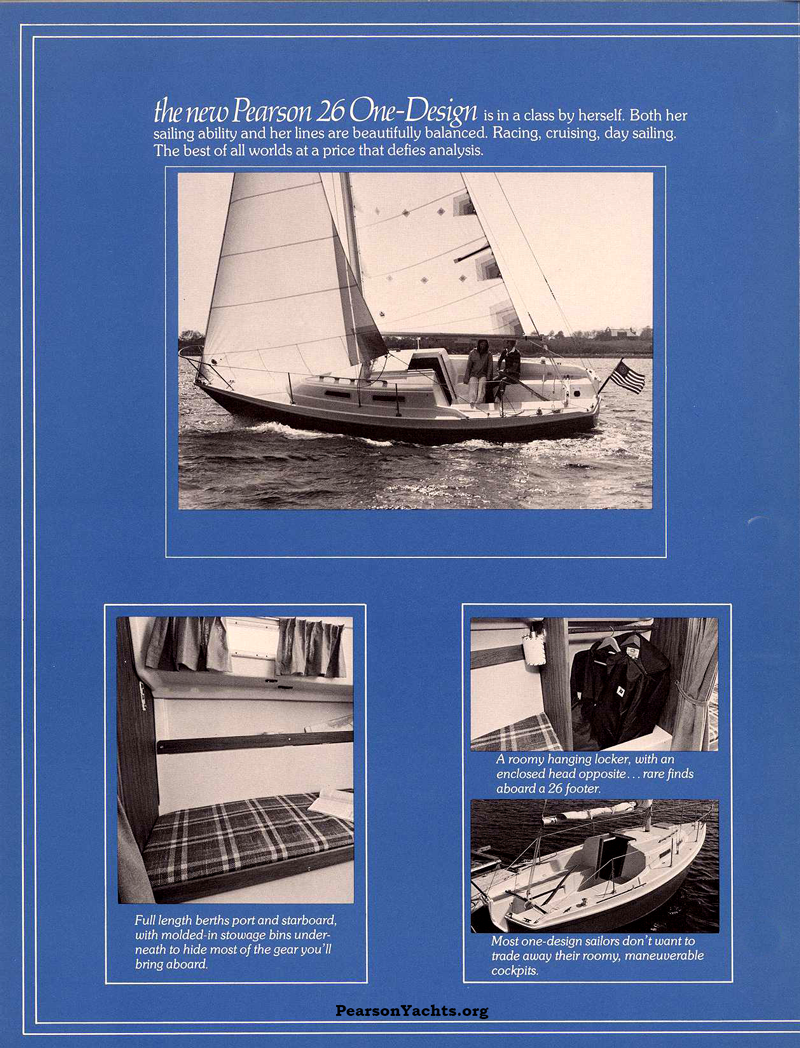

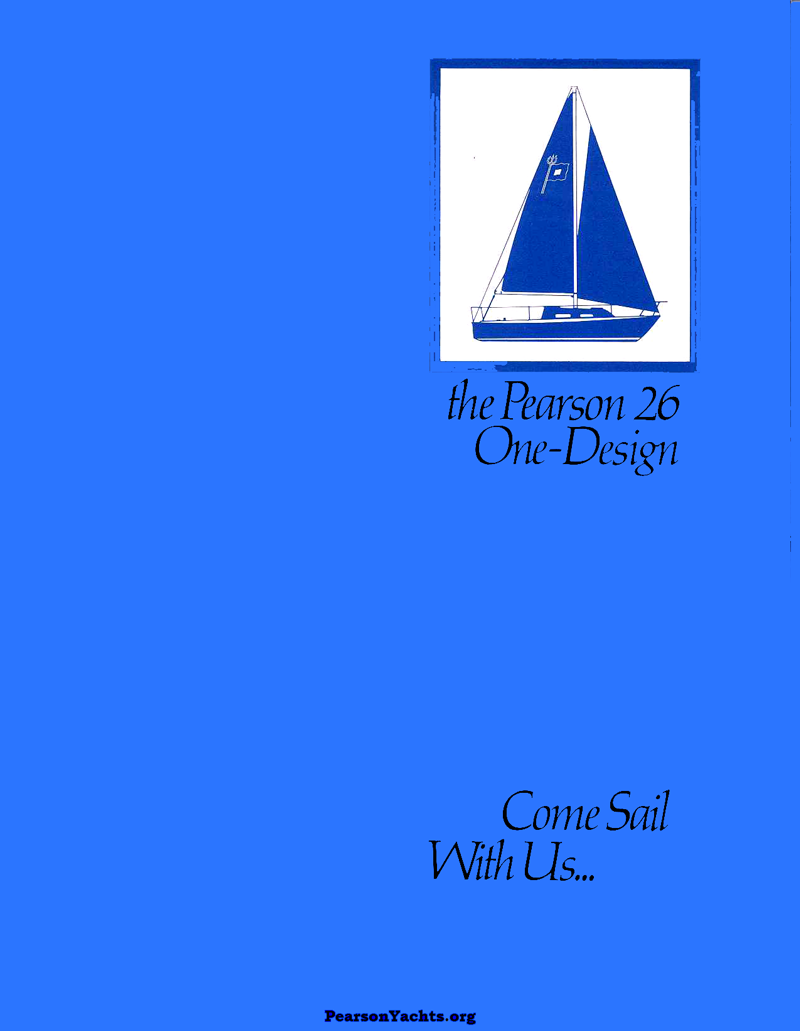

Pearson 26 One-Design Brochure

Click to enlarge

Pearson 26OD

Page 1

Pearson 26OD

Page 2

Pearson 26OD

Page 3

Pearson 26OD

Page 4
